Pallet Strapping and Banding: When and How to Use It
Pallet strapping and banding: when to use it, which materials to choose, how to apply it, and what to enter when requesting a freight quote.
Pallet strapping, also called banding, uses tensioned steel or plastic straps to help secure freight to a pallet or stabilize items within a package. Use it when the applicable packaging rules call for it or when the load needs more restraint than film and its other packaging provide. The straps must engage the pallet correctly, stay clear of handling equipment, and hold the freight without crushing or cutting the package.
Strapping is not a cure for a damaged pallet, unstable stack, inadequate carton, or unsecured item inside a crate. Build the package first, then select and apply the securement that fits the product and the LTL environment.
What pallet strapping does
A properly applied strap can connect a bundled load to the pallet deck, limit movement, or help stabilize items inside a crate. This is different from merely circling the outside of a carton stack. A horizontal band around the cartons can help hold the bundle together, but it does not attach that bundle to the pallet.
Strapping also serves a different purpose from stretch film. Film is useful for unitizing packages and containing a load. A strap supplies concentrated restraint along a defined path. Depending on the commodity and package, a complete design may use film, straps, edge protection, blocking, bracing, a crate, or a combination of those materials.
Neither film nor strapping replaces the minimum packaging requirements that apply to the freight. NMFTA advises checking those requirements before securing goods to a pallet, and ABF Freight’s current LTL packaging guide likewise tells shippers to meet or exceed the applicable NMFC minimums.
When should you strap a pallet?
Use strapping when it is part of a tested packaging design, required by the applicable NMFC provision or carrier, or needed to keep a suitable load attached to its base. It is commonly relevant when:
- A rigid item must be secured to the pallet deck.
- Containers or bundles need restraint in addition to stretch film.
- Bagged products, drums, pails, tires, or other units require commodity-specific securement.
- An item can roll or shift and needs blocking or bracing as well as straps.
- A crate requires internal items to be stabilized.
- The carrier’s service-specific packaging rules require banding.
Do not decide from weight or height alone. A dense machine, a flexible bagged load, and a column stack of cartons behave differently even at the same gross weight. Their contact surfaces, center of gravity, rigidity, edges, packaging strength, and potential movement all affect the securement method.
When strapping is not the whole answer
If the freight can roll, slide, or pivot, use blocking or bracing designed to resist that movement. A strap stretched across an open gap does not create a stable base. If cartons overhang, lean, or lack support, rebuild the stack on an appropriate pallet. If the product can be punctured or abraded, use the required protective packaging before applying a strap.
FedEx specifically advises blocking and bracing items that can roll or shift because of their shape or size. Its packaging guidance also warns that simply banding long, unprotected freight to a pallet does not provide outer protection or end blocking.
The practical question is not, “Can I add another strap?” It is, “What movement or hazard must this packaging control?”
Steel, polyester, or polypropylene?
Three common choices are steel, polyester, and polypropylene. The correct material and size depend on the load, strap path, closure, expected settling, environmental exposure, and application equipment.
Steel strapping
Steel resists elongation and can suit rigid, heavy-duty applications. It also presents sharp-edge, surface-damage, corrosion, and handling considerations. Do not choose steel from freight weight alone. Confirm that the package can tolerate the concentrated force and that trained personnel have compatible tensioning, sealing, and cutting equipment.
Polyester strapping
Polyester, often abbreviated PET, is used for many palletized loads and is available in several constructions and closure systems. ABF Freight’s detailed packaging guidance rates several polyester assemblies well for tension retention and shock absorption, but actual performance depends on the strap and the completed joint.
Polypropylene strapping
Polypropylene, or PP, is generally used in less demanding applications. ABF cautions that PP can stretch or loosen in the LTL environment. Do not treat its initial tightness as proof that it will retain the load throughout handling and transit.
Material names are not specifications. Strap strength, joint efficiency, tool compatibility, number, and direction all matter. Use a design or supplier specification developed for the actual load.
How to strap a pallet
1. Inspect the complete package
Verify the pallet is sound and rated for the finished load. Check cartons, crates, cushioning, blocking, and bracing. Correct overhang, unsupported areas, gaps, leaning, or internal movement before reaching for the strap.
2. Plan the strap path
Decide what the strap must restrain and where it will engage the pallet. FedEx advises applying banding to the pallet bottom and keeping it out of side-access notches. ABF likewise says straps should be positioned where forklift tines and pallet-jack wheels will not contact them.
Keep bands close to the load so they are less exposed to impact or snagging. If the load is much smaller than the pallet, FedEx recommends centering it and banding to the closest pallet deck boards rather than the pallet exterior.
3. Protect edges and surfaces
Use strap protectors or corner boards where the band crosses carton edges or another surface that could be crushed, cut, or marked. ABF’s current guide recommends strap protectors between straps and packaging. It also notes that corner boards can help keep boxes aligned and reduce damage from straps and stretch film.
Edge protection spreads force, but it does not make unlimited tension safe. The underlying package must still withstand the applied load.
4. Use compatible tools and closures
Use the tensioner, sealer, buckle, weld, or approved machine specified for the strap system. A high-rated strap can still fail at an incompatible or poorly formed joint. Inspect the strap and equipment before use, and follow the manufacturer’s operating and safety instructions.
Keep hands, face, and body out of the strap’s recoil path. Do not use damaged, frayed, kinked, or previously tensioned material unless its manufacturer explicitly permits reuse. When removing a band, use the correct cutting tool and control the released ends.
5. Apply the specified tension
Tension must be high enough to restrain the load but low enough to avoid package damage. Watch for crushed carton corners, bowed panels, damaged edge protectors, pallet deformation, or a load being pulled out of alignment.
ABF’s detailed guidance notes that straps can become ineffective if the load changes size because of shifting or compression. This is one reason soft or settling loads need a securement design that accounts for their behavior rather than a one-time “snug” check.
6. Inspect every completed band
Confirm that each strap follows the intended path, engages the pallet or package correctly, and has a sound closure. Look for twists, cuts, slack, sharp contact points, obstructed fork openings, exposed seals, or bands that can slide off the load.
Then test the handling unit as a whole. The freight should not rock, lean, or move independently of the pallet. If it does, stop and revise the packaging rather than adding tension blindly.
Vertical and horizontal bands do different jobs

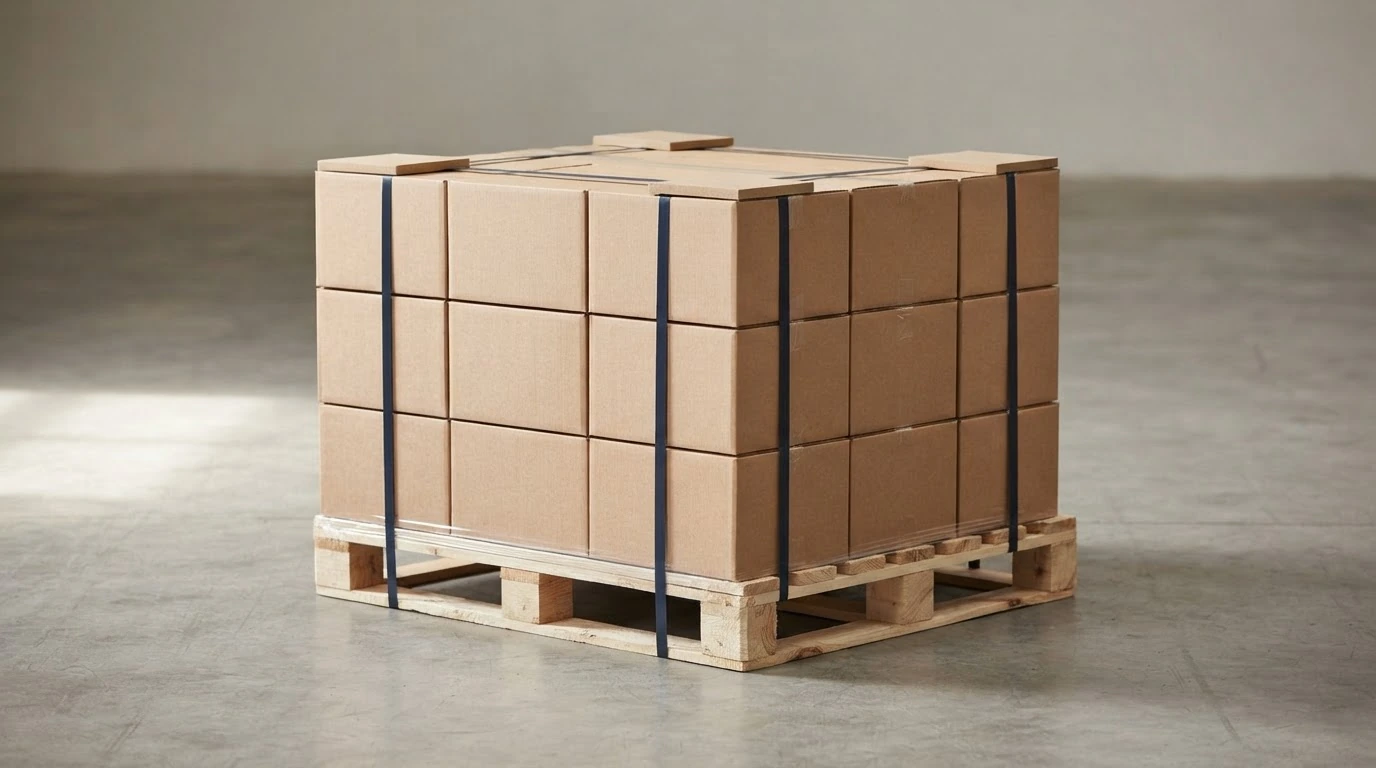

Vertical bands pass over the load and engage the pallet, helping connect freight to the base. Horizontal bands circle the load and can help keep a bundle together. A package may use one direction or both, but one does not automatically substitute for the other.
The number and spacing of bands must come from the load design, applicable rule, carrier guidance, or strap-system specification. Avoid universal claims such as “two straps are always enough” or “add a middle strap above a certain height.” Those shortcuts ignore material strength, joint efficiency, load geometry, and movement.
Common strapping mistakes
- Banding only the cartons when the load must be attached to the pallet
- Routing straps through fork or pallet-jack access points
- Applying a strap across an unsupported void or sharp unprotected edge
- Using tension to disguise a leaning, overhanging, or poorly built load
- Selecting material by price or color instead of its documented performance
- Mixing straps, seals, buckles, and tools that are not designed to work together
- Over-tensioning until cartons or edge protectors deform
- Ignoring settling, compression, or shifting that can make a band slack
- Assuming straps replace stretch film, blocking, bracing, or product packaging
- Reusing damaged material or cutting a live strap without controlling recoil
Pallet bands and vehicle securement are different
Shipper-applied pallet strapping creates and stabilizes a handling unit. FMCSA cargo-securement rules govern how motor carriers secure cargo on or within commercial motor vehicles. Pallet bands should not be described as satisfying the carrier’s vehicle-level obligations by themselves.
This distinction matters because an LTL pallet can be properly packaged for handling while the carrier still must load and secure it appropriately inside the trailer.
Prepare the finished shipment for a quote
Measure and weigh the pallet only after all straps, protectors, film, and other packaging are installed. Record the greatest finished length, width, and height and the gross weight including the pallet.
Have these details ready:
- Pallet or handling-unit count
- Accurate commodity description
- NMFC item and freight class when applicable
- Finished dimensions and gross weight
- Whether the completed package is structurally stackable
- Origin and destination ZIP codes
- Required pickup and delivery services
- Any hazardous-material or special-handling requirements
